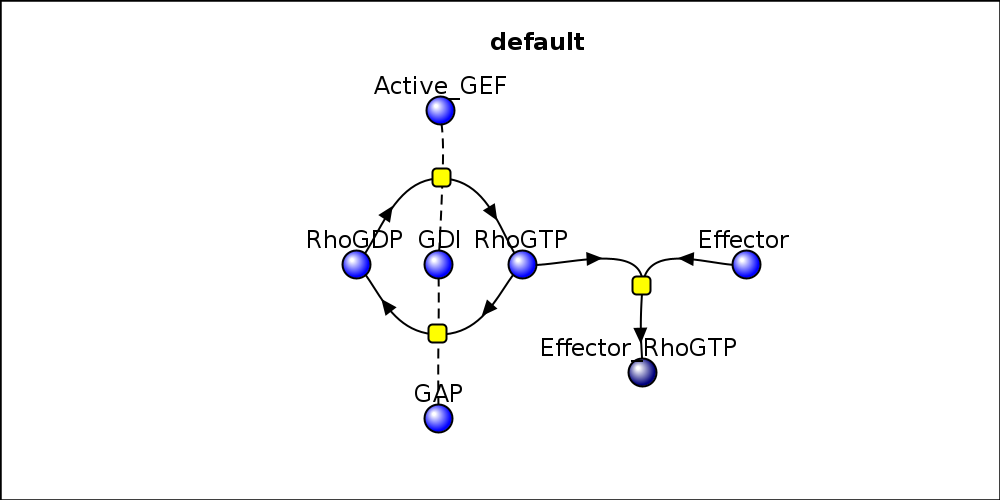

Reaction Diagram
Cross-References
Annotations
Reactions
Reactions | Name | Structure | Kinetics | Depiction |
---|---|---|---|---|
RhoGTP+EffectorEffector_RhoGTP | Effector_activation | default | GeneralKinetics | |
RhoGTPRhoGDP | RhoGTP_to_RhoGDP | default | GeneralKinetics | |
RhoGDPRhoGTP | RhoGDP_to_RhoGTP | default | GeneralKinetics |
Effector_activation Universal ID's
Effector_activation Text Annotations
RhoGTP_to_RhoGDP Universal ID's
RhoGTP_to_RhoGDP Text Annotations
RhoGDP_to_RhoGTP Universal ID's
RhoGDP_to_RhoGTP Text Annotations
Expressions for Effector_activation
reaction rate
J
((k8 * RhoGTP * Effector) - (k9 * Effector_RhoGTP)) [umol.l-1.min-1]
global
k8
28.2 [l.umol-1.min-1]
global
k9
0.18 [min-1]
Expressions for RhoGTP_to_RhoGDP
reaction rate
J
(kcatGAP * RhoGTP * GAP / ((KmGAPRho * (1.0 + (on5 * GDI / KmGAPGDI))) + (RhoGTP * (1.0 + (on5 * GDI / KmGAPGDI))))) [umol.l-1.min-1]
global
kcatGAP
95.9 [min-1]
global
KmGAPGDI
0.1 [umol.l-1]
global
KmGAPRho
4.48 [umol.l-1]
local
on5
1.0 [1]
Expressions for RhoGDP_to_RhoGTP
reaction rate
J
(kcatGEF * RhoGDP * Active_GEF / ((KmGEFRho * (1.0 + (on4 * GDI / KmGEFGDI))) + (RhoGDP * (1.0 + (on4 * GDI / KmGEFGDI))))) [umol.l-1.min-1]
global
kcatGEF
5.64 [min-1]
global
KmGEFRho
24.5 [umol.l-1]
global
KmGEFGDI
1.0 [umol.l-1]
local
on4
1.0 [1]
Structures
Name | Type | Electrical |
---|---|---|
default | Compartment | (+) (-) |
default Universal ID's
default Text Annotations
Species
Name | Structure | BioNetGen Definition | Depiction |
---|---|---|---|
Active_GEF | default | RhoGEF(Active~yes!-,). | |
RhoGDP | default | G_protein(State~GDP!-,GDI!-,Effector!-,). | |
RhoGTP | default | G_protein(State~GTP!-,GDI!-,Effector!-,). | |
GDI | default | GDI(Rho!-,). | |
GAP | default | RhoGAP(). | |
Effector | default | Effector(Rho!-,Active~no!-,). | |
Effector_RhoGTP | default | G_protein(State~GTP!-,GDI!-,Effector!1,).Effector(Rho!1,Active~yes!-,). |
Active_GEF Universal ID's
Active_GEF Text Annotations
RhoGDP Universal ID's
RhoGDP Text Annotations
RhoGTP Universal ID's
RhoGTP Text Annotations
GDI Universal ID's
GDI Text Annotations
GAP Universal ID's
GAP Text Annotations
Effector Universal ID's
Effector Text Annotations
Effector_RhoGTP Universal ID's
Effector_RhoGTP Text Annotations
Molecules
Name | BioNetGen Definition | DEPICTION |
---|---|---|
RhoGEF | RhoGEF(Active~no~yes,) | |
G_protein | G_protein(State~GTP~GDP,GDI,Effector,) | |
GDI | GDI(Rho,) | |
RhoGAP | RhoGAP() | |
Effector | Effector(Rho,Active~yes~no,) |
RhoGEF Universal ID's
RhoGEF Text Annotations
G_protein Universal ID's
G_protein Text Annotations
GDI Universal ID's
GDI Text Annotations
RhoGAP Universal ID's
RhoGAP Text Annotations
Effector Universal ID's
Effector Text Annotations
Observables
Name | Structure | Count | BNGL Definition | Sequence Type | DEPICTION |
---|---|---|---|---|---|
O0_RhoGEF_tot | default | Molecules | RhoGEF(Active!?,). | Multimolecular | |
O0_G_protein_tot | default | Molecules | G_protein(State!?,GDI!?,Effector!?,). | Multimolecular | |
O0_GDI_tot | default | Molecules | GDI(Rho!?,). | Multimolecular | |
O0_RhoGAP_tot | default | Molecules | RhoGAP(). | Multimolecular | |
O0_Effector_tot | default | Molecules | Effector(Rho!?,Active!?,). | Multimolecular |
O0_RhoGEF_tot Universal ID's
O0_RhoGEF_tot Text Annotations
O0_G_protein_tot Universal ID's
O0_G_protein_tot Text Annotations
O0_GDI_tot Universal ID's
O0_GDI_tot Text Annotations
O0_RhoGAP_tot Universal ID's
O0_RhoGAP_tot Text Annotations
O0_Effector_tot Universal ID's
O0_Effector_tot Text Annotations
Applications
Name | Properties | Math Type | Annotation |
---|---|---|---|
GDI_integrated |
Specs -
Species Specs - Reaction Simulations |
Deterministic (ODE) Compartmental |
GDI_integrated Universal ID's
GDI_integrated Text Annotations
Specifications (Species) - GDI_integrated go to Simulations
Species | Initial Condition | Diffusion Constant | Structure |
---|---|---|---|
Active_GEF | 0.31 [umol] | 0.0 [m2/min] | default |
RhoGDP | 1.3 [umol] | 0.0 [m2/min] | default |
RhoGTP | 0.0 [umol] | 0.0 [m2/min] | default |
GDI | 0.7 [umol] | 0.0 [m2/min] | default |
GAP | 0.1 [umol] | 0.0 [m2/min] | default |
Effector | 1.0 [umol] | 0.0 [m2/min] | default |
Effector_RhoGTP | 0.0 [umol] | 0.0 [m2/min] | default |
Specifications (Reaction) - GDI_integrated go to Simulations
Simulations - GDI_integrated go to Specifications
Name | End Time | Output Options |
---|---|---|
Simulation0 | 600.0 |
KeepEvery 1 KeepAtMost 1000 |
GDI_integrated Universal ID's
GDI_integrated Text Annotations
Assignments
Name | Variable | Assignment Function Expression |
---|
Events
Name | Trigger Type | Variable Assignment |
---|
Geometry Compartmental1055847981
(Origin: 0.0, 0.0, 0.0; Extent: 10.0, 10.0, 10.0 [m])
Dimension | Type | Subdomain | Adjacent Subvolumes | Size | Mapped Compartment |
---|---|---|---|---|---|
Compartmental | Compartment | default |
Events
Name | Variable | Rate Expression |
---|
Global Parameters
Name | Expression |
---|---|
k3 | 0.5[min-1] |
k2 | 0.1[min-1] |
kcatGEF | 5.64[min-1] |
KmGEFRho | 24.5[umol.l-1] |
KmGEFGDI | 1.0[umol.l-1] |
k1 | 1.0[l.umol-1.min-1] |
kcatGAP | 95.9[min-1] |
KmGAPGDI | 0.1[umol.l-1] |
KmGAPRho | 4.48[umol.l-1] |
k5 | 0.05[min-1] |
k4 | 0.5[l.umol-1.min-1] |
k6 | 0.5[l.umol-1.min-1] |
k7 | 0.05[min-1] |
k8 | 28.2[l.umol-1.min-1] |
k9 | 0.18[min-1] |
Universal ID's
